Circuit Breaker

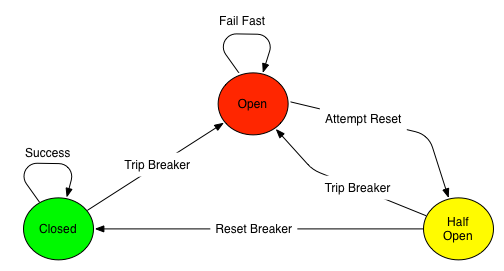

The Circuit Breaker pattern is inspired by the real-world electrical circuit breaker, which is used to detect excessive current draw and fail fast to protect electrical equipment. The software-based circuit breaker works on the same notion, by encapsulating the operation and monitoring it for failures. The Circuit Breaker pattern operates in three states, as illustrated in the following figure:


The states are as follows:

  • Closed: When operating successfully.

  • Open: When failure is detected, and the breaker opens to short-circuit and fails fast. In this state, the circuit breaker avoids invoking the protected operation and avoids putting the additional load on the struggling service.

  • Half-Open: After a short period in the open state, an operation is attempted to see whether it can complete successfully, and depending on the outcome, it will transfer to either open or closed state.

The Circuit Breaker eip supports the following options which are listed below.

Name Description Default Type

note

The note for this node.

String

description

The description for this node.

String

disabled

Whether to disable this EIP from the route during build time. Once an EIP has been disabled then it cannot be enabled later at runtime.

false

Boolean

configuration

Refers to a circuit breaker configuration to use for configuring the circuit breaker EIP.

String

inheritErrorHandler

Whether to inherit Camel error handling during circuit breaker. By default, Camel error handler is turned off.

false

Boolean

resilience4jConfiguration

Configures the circuit breaker to use Resilience4j with the given configuration.

Resilience4jConfigurationDefinition

faultToleranceConfiguration

Configures the circuit breaker to use MicroProfile Fault Tolerance with the given configuration.

FaultToleranceConfigurationDefinition

onFallback

The fallback route path to execute when the circuit breaker triggers.

OnFallbackDefinition

outputs

Required

List

Exchange properties

The Circuit Breaker eip supports the following exchange properties which are listed below.

The exchange properties are set on the Exchange by the EIP, unless otherwise specified in the description. This means those properties are available after this EIP has completed processing the Exchange.

Name Description Default Type

CamelResponseSuccessfulExecution

Whether the exchange was processed successfully by the circuit breaker.

boolean

CamelResponseFromFallback

Whether the exchange was processed by the onFallback by the circuit breaker.

boolean

CamelResponseShortCircuited

Whether the call did not complete normally and the circuit breaker short circuited the exchange, to the onFallback if there is one. This is true for a failed call, a timeout and a rejected call alike; use CamelCircuitBreakerResponseRejected to know whether the call was attempted.

boolean

CamelResponseTimedOut

Whether the exchange timed out during processing by the circuit breaker.

boolean

CamelResponseRejected

Whether the circuit breaker rejected the call without attempting it, because the breaker is open or the bulkhead is full. Also set inside the onFallback, where it tells a dead service apart from a single failed call.

boolean

CamelResponseIgnored

Whether the circuit breaker ignored an exception during processing.

boolean

CamelResponseState

The state of the circuit breaker.

String

Inside the onFallback these properties tell why the fallback runs. CamelCircuitBreakerResponseFromFallback and CamelCircuitBreakerResponseShortCircuited are true whenever the fallback runs, whatever the cause. To know what happened to the call itself:

What happened CamelCircuitBreakerResponseRejected CamelCircuitBreakerResponseTimedOut

The call was made and failed

false

not set

The call was made and timed out

false

true

The call was not attempted: the breaker is open, or the bulkhead is full

true

not set

CamelCircuitBreakerState is the state of the breaker after the call was recorded, so the call that opens the breaker reports OPEN although it was attempted; use the rejected property to know whether a call was made. The caught exception is available in the fallback, for example as ${exception.message} in the Simple language.

For example, a fallback that answers differently when the service is down rather than failing once:

- route:
    from:
      uri: timer:stock?period=1000
      steps:
        - circuitBreaker:
            steps:
              - to:
                  uri: direct:supplier
            onFallback:
              steps:
                - choice:
                    when:
                      - expression:
                          simple:
                            expression: "${exchangeProperty.CamelCircuitBreakerResponseRejected} == true"
                        steps:
                          - setBody:
                              expression:
                                constant:
                                  expression: "supplier is down, using the last known stock"
                    otherwise:
                      steps:
                        - setBody:
                            expression:
                              constant:
                                expression: "stock check failed, will try again"

Example

Below is an example route showing a circuit breaker endpoint that protects against slow operation by falling back to the in-lined fallback route.

In this example, the circuit breaker protects against slow operation by falling back to the in-lined fallback route.

  • Java

  • XML

  • YAML

from("direct:start")
    .circuitBreaker()
        .to("http://fooservice.com/slow")
    .onFallback()
        .transform().constant("Fallback message")
    .end()
    .to("mock:result");
<route>
  <from uri="direct:start"/>
  <circuitBreaker>
    <to uri="http://fooservice.com/slow"/>
    <onFallback>
      <transform>
        <constant>Fallback message</constant>
      </transform>
    </onFallback>
  </circuitBreaker>
  <to uri="mock:result"/>
</route>
- route:
    from:
      uri: direct:start
      steps:
        - circuitBreaker:
            steps:
              - to:
                  uri: http://fooservice.com/slow
            onFallback:
              steps:
                - transform:
                    expression:
                      constant:
                        expression: Fallback message
        - to:
            uri: mock:result

Route lifecycle and breaker state

When a route is stopped and started, the circuit breaker state is reset (an OPEN breaker returns to CLOSED) and any collected metrics are cleared. This is by design — a route stop/start is a full lifecycle reset, equivalent to a fresh boot.

Circuit Breaker components

Camel provides two implementations of this pattern:
